Under Water RP5 Series - Dry Mate

Under water connectors with standard 15,000 psi pressure rating (open faced, closed faced and PBOF), redundant sealing, super rugged PEEK insulators & reliable delivery dates.
Injection Molded PEEK is the most rugged electrical insulator technology available; easily outperforming glass to metal seals or glass reinforced epoxy (GRE). This prevents electrical shorts due to cracked glass seals or chipped glass reinforced epoxy insulators. The connectors can be sold in kit form, or as factory terminated assemblies.

Patent Pending



CORROSION PROOF UNDERWATER CONNECTOR SYSTEM

100% ELIMINATES CATHODIC DELAMINATION – RP5 KAHUNA – DRY-MATE

Rampart Products Under Water connectors are available in all common shell types as well as custom solutions.

BCR – Bulkhead Connector, Receptacle

BCR – Kahuna – To eliminate cathodic delamination

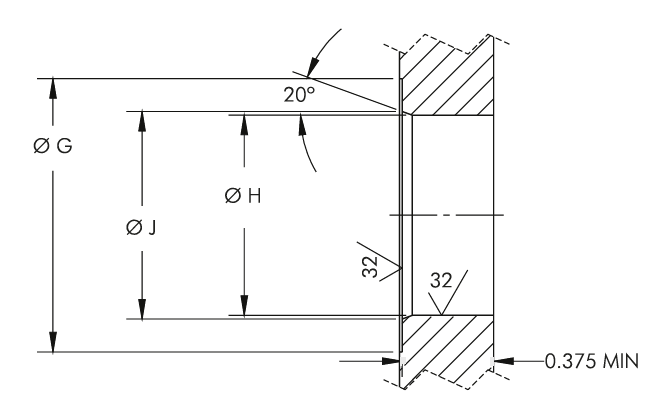

FCR – Flange Connector, Receptacle

FCR – Kahuna – To eliminate cathodic delamination

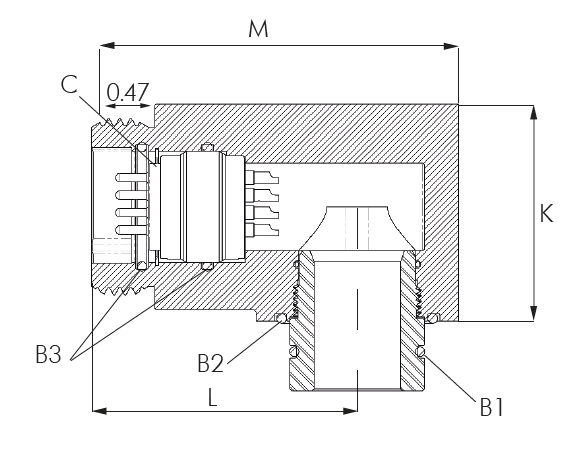

FCR90 – Flange Connector, Receptacle – Low Profile, 90 degrees

CCR – Cable Connector, Receptacle

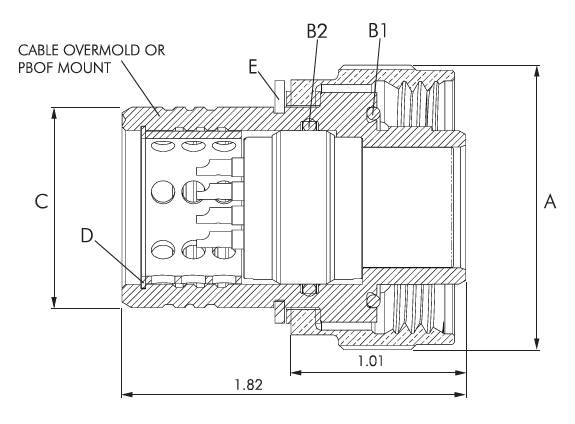

CCP – Cable Connector, Plug

CCP – Kahuna – To eliminate cathodic delamination

PBOF – Pressure balanced oil filled, use with CCP and CCR.

PBOF90 – Pressure balanced oil filled, use with CCP and CCR

CAPS - SPLASH AND PRESSURE PROOF

Plug Protector

Splash Proof

Receptacle Protector

Splash Proof

Plug Protector

High Pressure

Receptacle Protector

High Pressure

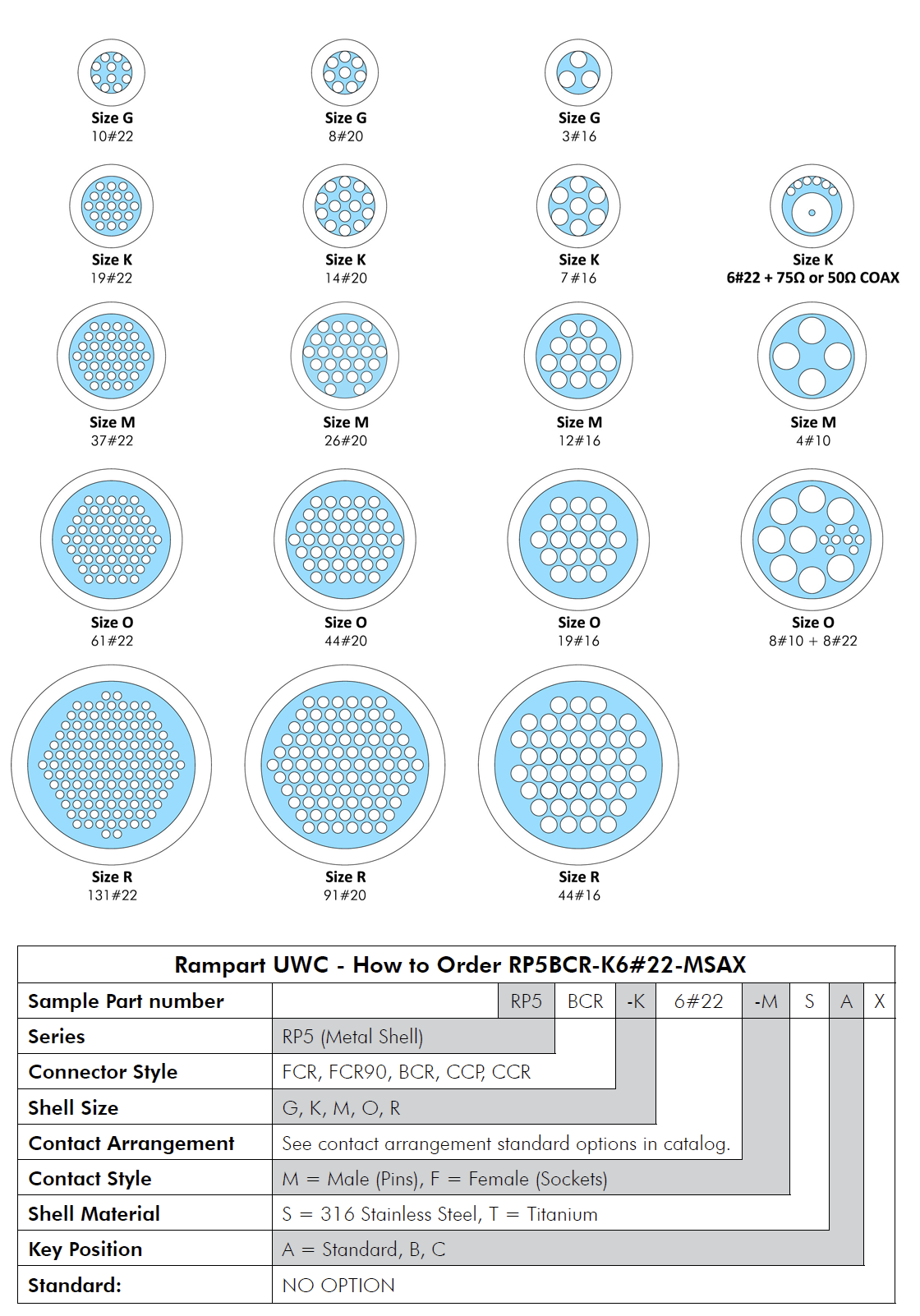

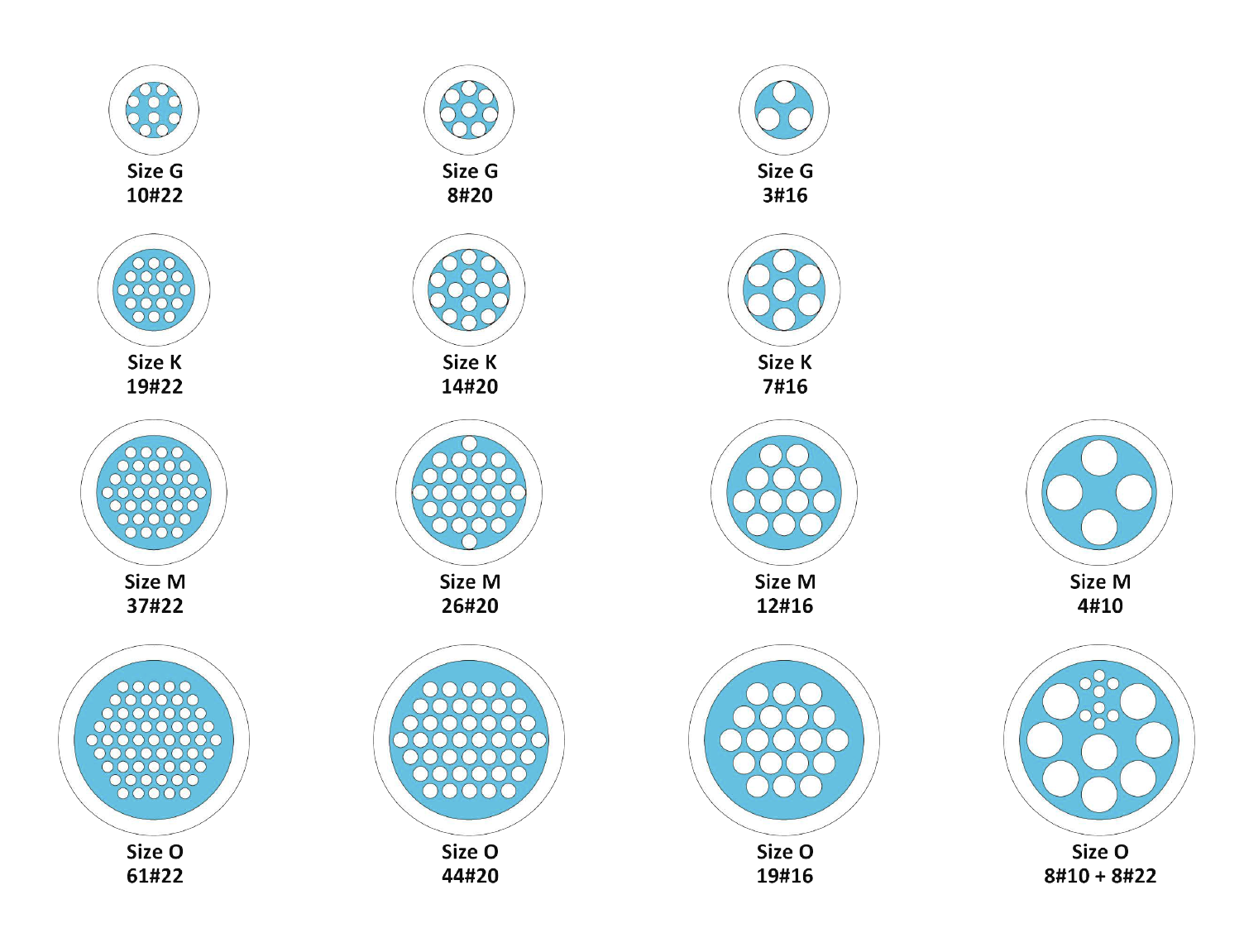

standard insert configurations

Standard insert configurations are rapidly available and at low cost. Custom configurations available. View shown is front of male.

Items quoted separately: BCR Nut and Washer; Cable and Overmold (CCP & CCR); Receptacle flying leads.
